Product Description

Technical Specification

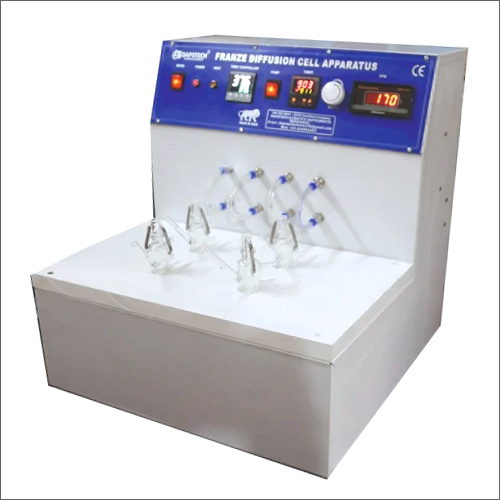

Stirrer Drive: 1

Number of Cells: 6 stage

Cell size : 5ml /10ml/15ml(optional)

Material of Construction of Enclosure: Mild Steel outer Body Powder Coated

RPM Indicator: Digital

Speed Range &Accuracy : 50-500rpm(1.0)

Controlled by Regulator

Water Circulation System

Water circulating in each cell.

Material of Construction of Enclosure: S.S. 304 inner chamber.

Temperature Range& Accuracy: Ambient to 80C(0.2C)

Digital Temperature controller for precise temperature control.

Power Requirements: 220/230V AC 50 Hz

                                         110/220v AC 50-60 Hz

Accessories

Magnetic Stirrer

Timer

Optional :

Touch Panel HMI

10x10 Program segments with data logger

 4.3(480 272) 65,536 Colors TFT

  Cortex-A8 800MHz CPU

  256 MB RAM

  256 MB ROM

  1 COM port / 1 extension COM port

  USB Host

  USB Client

  Operation Temperature: 0? 50

  Storage Temperature: -20? 60
